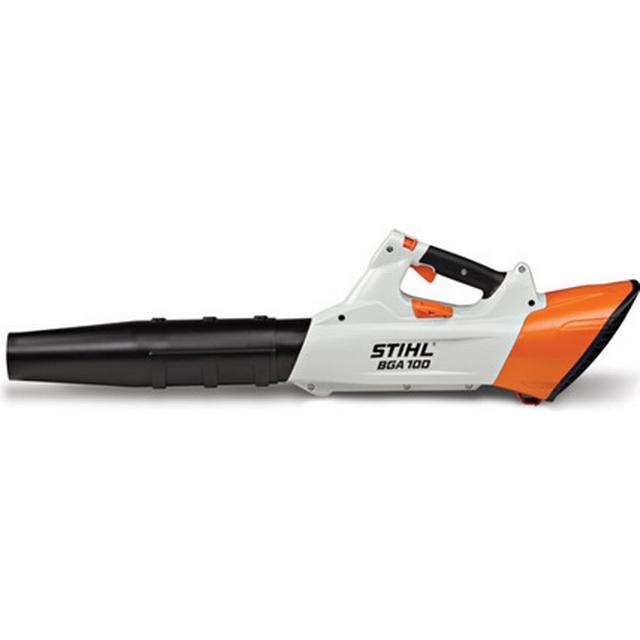

Stihl – BGA 100 Battery Blower Shell

The BGA 100 is a professional, hand held blower for gardeners and contractors. Part of the AP System and used in conjunction with the AR backpack batteries, or the battery belt (plus connecting lead), it produces optimum blowing power, with 3 power stages and the option of power boost for those really tough jobs. At only 2.5 kg (not including battery), this well balanced, low noise blower makes for comfortable use over long periods, especially in noise sensitive areas. To run the BGA 100 with an AP battery the following accessories need to be used; battery belt with AP holster plus connecting cable, or, AP carrying backpack system.

Technical data

Technical data	Value
Cordless technology	AP System
Level 1- working hours with AR 3000 L min 1)	up to 555
Recommended battery	AR 3.000
Rated voltage V	36
Working hours per battery charge with AR 2000 L min 1)	up to 375
Battery run time with AP 300 min 2)	up to 83
Battery life time AR 2000 min 1)	up to 300
Weight kg	2.5
Battery life time AR 3000 min 1)	up to 395
Weight kg 3)	2.5
Weight kg 3)	2.5
Max. Airflow m³/h 4)	840
Sound pressure level dB(A) 5)	80
Sound power level dB(A) 5)	90
Vibration value, right m/s2 6)	0.9
Air flow rate m3/h 7)	840
Blowing force N 8)	17
Working hours per battery charge with AR 2000, level 2 min 1)	up to 130
Max. airspeed m/s	75
Equipment	Round nozzle
Working hours per battery charge with AR 2000 L, level 2 min 1)	up to 160
Working hours per battery charge with AR 2000 L, boost min 9)	up to 75
Boost mode – working hours with AR 3000 L min 1)	up to 105
Level 3 – working hours with AR 3000 L min 1)	up to 140
Level 2 – working hours with AR 3000 L min 1)	up to 225
Working hours per battery charge with AR 2000 L, level 3 min 1)	up to 100

1.

   Battery life times are approximate and may vary depending on application


2.

   Figures can vary depending on the power setting and the application


3.

   Excluding battery


4.

   With round nozzle


5.

   K-factor according to DIR 2006/42/EC = 2.5 dB (A)


6.

   K-factor according to DIR 2006/42/EC = 2m / s ²


7.

   With round nozzle in the blowing operation


8.

   Combination of airspeed and air throughput


9.

   Working hours per battery charge with AR 2000, level 2
